Messaging extensions enable users to execute search queries or trigger actions in external systems.
And the results of these actions are sent from your custom web service to the Microsoft Teams client as embedded web pages or richly formatted cards. In this article, You will learn how to create different types of messaging extensions in a custom Microsoft Teams app.
What are messaging extensions?
A messaging extension is a cloud-hosted service that basically listen to user requests and responds with structured data, typically in the form of a richly formatted card.
Messaging extensions allow users to interact with your web service through buttons and forms in the Microsoft Teams client.
It allows us to present users with a modal popup (called a task module in Teams) to collect or display information, then process their interaction and send information back to Teams.
It also takes advantage of the Bot Framework’s messaging schema and secure communication protocol to connect with Microsoft Teams Client App.
Prerequisites:
- Node.js – v10.* (or higher)
- NPM (installed with Node.js) – v6.* (or higher)
- Gulp – v4.* (or higher)
- Yeoman – v3.* (or higher)
- Yeoman Generator for Microsoft Teams – v2.13.0 (or higher)
- Visual Studio Code
Install Yeoman, Gulp global command-line interface, and Typescript compiler globally using NPM.
npm install yo gulp-cli typescript –global
Install generator-teams globally using NPM.
npm install generator-teams –global
To install preview versions of the generator, run below command.
npm install generator-teams@preview --global
Register Bot in Azure
Firstly, we need to register Bot in Azure to get the App Id and secret and configure the endpoint URL.
- Open MS Azure Portal (https://portal.azure.com)
- Click Create a resource.
- Search Bot.

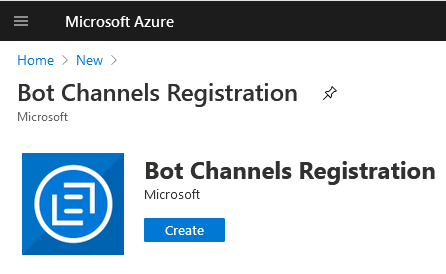

- Select Bot Channels Registration.
5. Click Create.

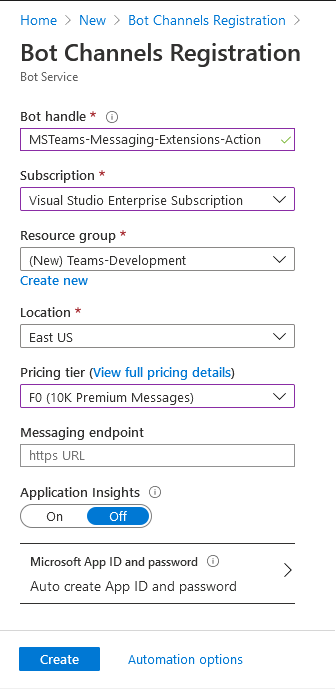

6. Fill in the details to create Bot channels registration.
7. Click Create

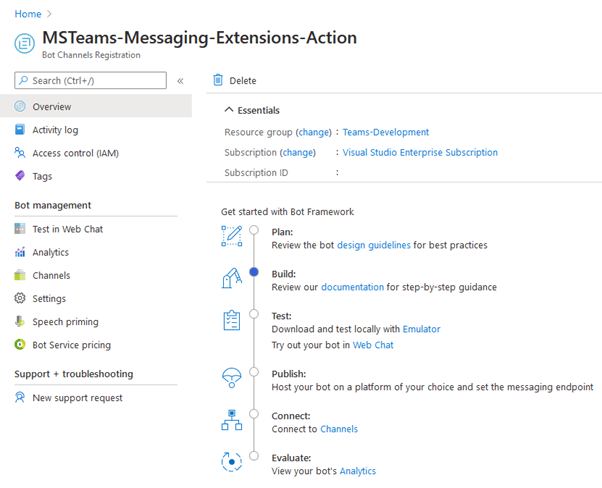

8. The new Bot channels registration is ready.
Get the App Id and secret
- From the left menu, click Settings.

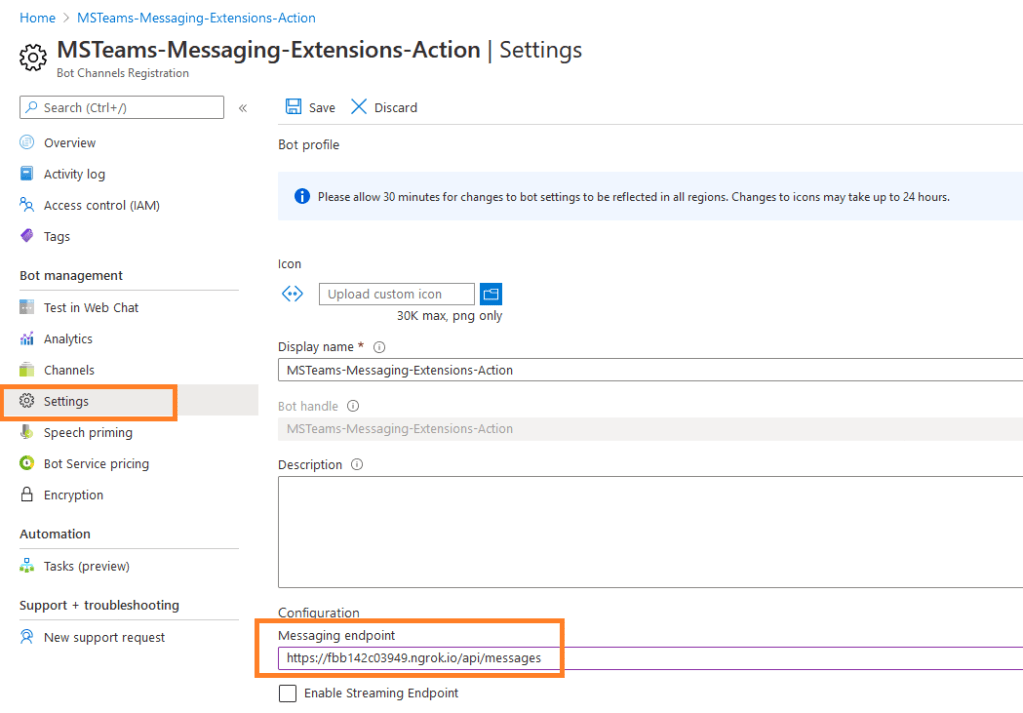

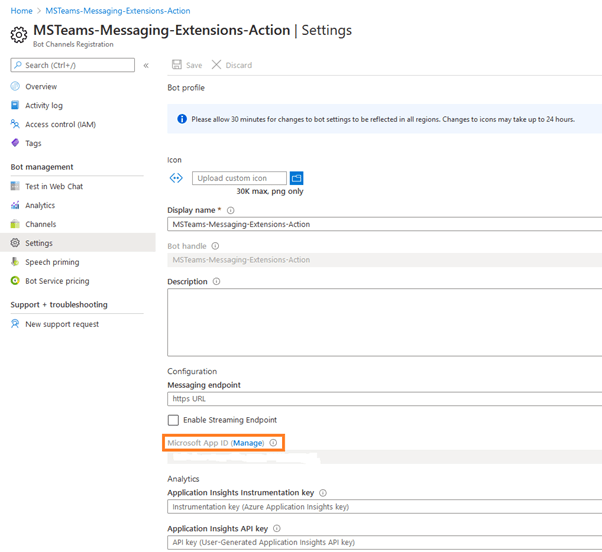

- Add Messaging endpoint as ngrok URL.
3. Click Microsoft App ID (Manage).

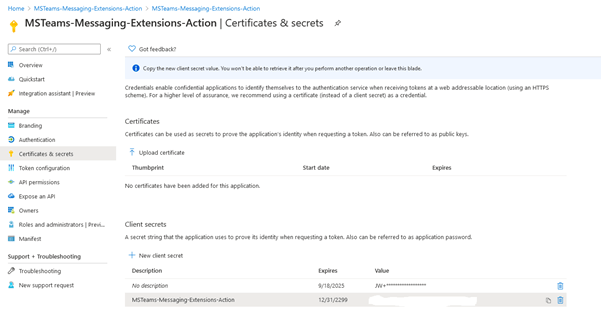

4. Under Certificates & secrets , create New client secret.
5. Note down the values for future reference.
xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Configure MS Teams Channel
- From the left menu, click Channels.

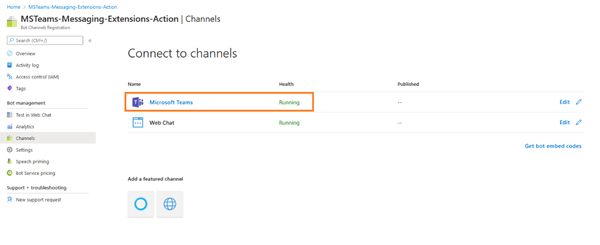

- Click Configure Microsoft Teams Channel.
3. Follow the instructions to configure the MS Teams channel
Implement Action Messaging extension with Yo Teams
We will generate a solution using Yo Teams.
- On the command prompt, type below command.
yo teams

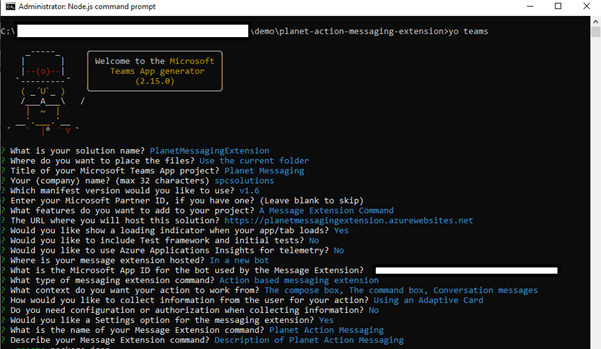

2. Follow the wizard to set up the solution.
3. On the command prompt, type code . to open the solution in visual studio code.

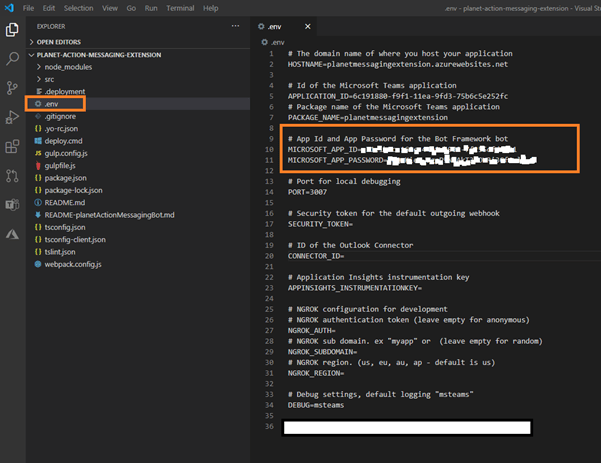

4. In the .env file, configure application ID and client secret from Bot channels registration.
Planets Data as Backend
We will implement Planets data as a backend to query against.
Add a new file planets.json to the “/src/app” folder and add the following JSON to it:
Font Definitions */ @font-face {font-family:"Cambria Math"; panose-1:2 4 5 3 5 4 6 3 2 4; mso-font-charset:0; mso-generic-font-family:roman; mso-font-pitch:variable; mso-font-signature:3 0 0 0 1 0;} @font-face {font-family:Calibri; panose-1:2 15 5 2 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:swiss; mso-font-pitch:variable; mso-font-signature:-469750017 -1073732485 9 0 511 0;} @font-face {font-family:Consolas; panose-1:2 11 6 9 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:modern; mso-font-pitch:fixed; mso-font-signature:-536869121 64767 1 0 415 0;} @font-face {font-family:"Segoe UI Symbol"; panose-1:2 11 5 2 4 2 4 2 2 3; mso-font-charset:0; mso-generic-font-family:swiss; mso-font-pitch:variable; mso-font-signature:-2147483165 302055407 262144 0 1 0;} /* Style Definitions */ p.MsoNormal, li.MsoNormal, div.MsoNormal {mso-style-unhide:no; mso-style-qformat:yes; mso-style-parent:""; margin-top:0in; margin-right:0in; margin-bottom:8.0pt; margin-left:0in; line-height:107%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoChpDefault {mso-style-type:export-only; mso-default-props:yes; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoPapDefault {mso-style-type:export-only; margin-bottom:8.0pt; line-height:107%;} @page WordSection1 {size:8.5in 11.0in; margin:1.0in 1.0in 1.0in 1.0in; mso-header-margin:.5in; mso-footer-margin:.5in; mso-paper-source:0;} div.WordSection1 {page:WordSection1;} -->
[
{
"id": "1",
"name": "Mercury",
"summary": "Mercury is the smallest and innermost planet in the Solar System. Its orbit around the Sun takes 87.97 days, the shortest of all the planets in the Solar System. It is named after the Roman deity Mercury, the messenger of the gods.",
"solarOrbitYears": 0.24,
"solarOrbitAvgDistanceKm": 57909050,
"numSatellites": 0,
"wikiLink": "https://en.wikipedia.org/wiki/Mercury_(planet)",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/d/d9/Mercury_in_color_-_Prockter07-edit1.jpg",
"imageAlt": "NASA/Johns Hopkins University Applied Physics Laboratory/Carnegie Institution of Washington [Public domain]"
},
{
"id": "2",
"name": "Venus",
"summary": "Venus is the second planet from the Sun. It is named after the Roman goddess of love and beauty. As the second-brightest natural object in the night sky after the Moon, Venus can cast shadows and, rarely, is visible to the naked eye in broad daylight. Venus lies within Earth's orbit, and so never appears to venture far from the Sun, setting in the west just after dusk and rising in the east a bit before dawn.",
"solarOrbitYears": 0.62,
"solarOrbitAvgDistanceKm": 108208000,
"numSatellites": 0,
"wikiLink": "https://en.wikipedia.org/wiki/Venus",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/e/e5/Venus-real_color.jpg",
"imageAlt": ""Image processing by R. Nunes", link to http://www.astrosurf.com/nunes [Public domain]"
},
{
"id": "3",
"name": "Earth",
"summary": "Earth is the third planet from the Sun and the only astronomical object known to harbor life. According to radiometric dating and other sources of evidence, Earth formed over 4.5 billion years ago. Earth's gravity interacts with other objects in space, especially the Sun and the Moon, which is Earth's only natural satellite. Earth orbits around the Sun in 365.256 days, a period known as an Earth sidereal year. During this time, Earth rotates about its axis about 366.256 times.",
"solarOrbitYears": 1.00,
"solarOrbitAvgDistanceKm": 149597500,
"numSatellites": 1,
"wikiLink": "https://en.wikipedia.org/wiki/Earth",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/9/97/The_Earth_seen_from_Apollo_17.jpg",
"imageAlt": "Apollo 17 [Public domain]"
},
{
"id": "4",
"name": "Mars",
"summary": "Mars is the fourth planet from the Sun and the second-smallest planet in the Solar System after Mercury. In English, Mars carries a name of the Roman god of war and is often referred to as the 'Red Planet'. The latter refers to the effect of the iron oxide prevalent on Mars' surface, which gives it a reddish appearance distinctive among the astronomical bodies visible to the naked eye.",
"solarOrbitYears": 1.88,
"solarOrbitAvgDistanceKm": 134935000,
"numSatellites": 2,
"wikiLink": "https://en.wikipedia.org/wiki/Mars",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/0/02/OSIRIS_Mars_true_color.jpg",
"imageAlt": "ESA - European Space Agency & Max-Planck Institute for Solar System Research for OSIRIS Team ESA/MPS/UPD/LAM/IAA/RSSD/INTA/UPM/DASP/IDA [CC BY-SA 3.0-IGO (https://creativecommons.org/licenses/by-sa/3.0-igo)]"
},
{
"id": "5",
"name": "Jupiter",
"summary": "Jupiter is the fifth planet from the Sun and the largest in the Solar System. It is a gas giant with a mass one-thousandth that of the Sun, but two-and-a-half times that of all the other planets in the Solar System combined. Jupiter is one of the brightest objects visible to the naked eye in the night sky, and has been known to ancient civilizations since before recorded history. It is named after the Roman god Jupiter. When viewed from Earth, Jupiter can be bright enough for its reflected light to cast shadows, and is on average the third-brightest natural object in the night sky after the Moon and Venus.",
"solarOrbitYears": 11.86,
"solarOrbitAvgDistanceKm": 445336000,
"numSatellites": 78,
"wikiLink": "https://en.wikipedia.org/wiki/Jupiter",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/5/50/Jupiter%2C_image_taken_by_NASA%27s_Hubble_Space_Telescope%2C_June_2019_-_Edited.jpg",
"imageAlt": "NASA, ESA, and A. Simon (NASA Goddard), edited by PlanetUser [Public domain]"
},
{
"id": "6",
"name": "Saturn",
"summary": "Saturn is the sixth planet from the Sun and the second-largest in the Solar System, after Jupiter. It is a gas giant with an average radius about nine times that of Earth. It has only one-eighth the average density of Earth; however, with its larger volume, Saturn is over 95 times more massive. Saturn is named after the Roman god of wealth and agriculture; its astronomical symbol (♄) represents the god's sickle.",
"solarOrbitYears": 29.46,
"solarOrbitAvgDistanceKm": 1433525000,
"numSatellites": 82,
"wikiLink": "https://en.wikipedia.org/wiki/Saturn",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/c/c7/Saturn_during_Equinox.jpg",
"imageAlt": "NASA / JPL / Space Science Institute [Public domain]"
},
{
"id": "7",
"name": "Uranus",
"summary": "Uranus is the seventh planet from the Sun. It has the third-largest planetary radius and fourth-largest planetary mass in the Solar System. Uranus is similar in composition to Neptune, and both have bulk chemical compositions which differ from that of the larger gas giants Jupiter and Saturn. For this reason, scientists often classify Uranus and Neptune as \"ice giants\" to distinguish them from the gas giants.",
"solarOrbitYears": 84.02,
"solarOrbitAvgDistanceKm": 2883000000,
"numSatellites": 27,
"wikiLink": "https://en.wikipedia.org/wiki/Uranus",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/3/3d/Uranus2.jpg",
"imageAlt": "NASA/JPL-Caltech [Public domain]"
},
{
"id": "8",
"name": "Neptune",
"summary": "Neptune is the eighth and farthest known planet from the Sun in the Solar System. In the Solar System, it is the fourth-largest planet by diameter, the third-most-massive planet, and the densest giant planet. Neptune is 17 times the mass of Earth, slightly more massive than its near-twin Uranus. Neptune is denser and physically smaller than Uranus because its greater mass causes more gravitational compression of its atmosphere.",
"solarOrbitYears": 164.80,
"solarOrbitAvgDistanceKm": 4500000000,
"numSatellites": 14,
"wikiLink": "https://en.wikipedia.org/wiki/Neptune",
"imageLink": "https://upload.wikimedia.org/wikipedia/commons/6/63/Neptune_-_Voyager_2_%2829347980845%29_flatten_crop.jpg",
"imageAlt": "Justin Cowart [CC BY (https://creativecommons.org/licenses/by/2.0)]"
}
]Add a new file planetDisplayCard.json to the “/src/app” folder and add the following JSON to it. This file contains the Adaptive Card used to generate the details of the planet:
<!-- /* Font Definitions */ @font-face {font-family:"Cambria Math"; panose-1:2 4 5 3 5 4 6 3 2 4; mso-font-charset:0; mso-generic-font-family:roman; mso-font-pitch:variable; mso-font-signature:3 0 0 0 1 0;} @font-face {font-family:Calibri; panose-1:2 15 5 2 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:swiss; mso-font-pitch:variable; mso-font-signature:-469750017 -1073732485 9 0 511 0;} @font-face {font-family:Consolas; panose-1:2 11 6 9 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:modern; mso-font-pitch:fixed; mso-font-signature:-536869121 64767 1 0 415 0;} /* Style Definitions */ p.MsoNormal, li.MsoNormal, div.MsoNormal {mso-style-unhide:no; mso-style-qformat:yes; mso-style-parent:""; margin-top:0in; margin-right:0in; margin-bottom:8.0pt; margin-left:0in; line-height:107%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoChpDefault {mso-style-type:export-only; mso-default-props:yes; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoPapDefault {mso-style-type:export-only; margin-bottom:8.0pt; line-height:107%;} @page WordSection1 {size:8.5in 11.0in; margin:1.0in 1.0in 1.0in 1.0in; mso-header-margin:.5in; mso-footer-margin:.5in; mso-paper-source:0;} div.WordSection1 {page:WordSection1;} -->
{
"$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
"type": "AdaptiveCard",
"version": "1.0",
"body": [
{
"id": "cardHeader",
"type": "Container",
"items": [
{
"id": "planetName",
"type": "TextBlock",
"weight": "bolder",
"size": "medium"
}
]
},
{
"type": "Container",
"id": "cardBody",
"items": [
{
"id": "planetSummary",
"type": "TextBlock",
"wrap": true
},
{
"id": "planetDetails",
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "100",
"items": [
{
"id": "planetImage",
"size": "stretch",
"type": "Image"
}
]
},
{
"type": "Column",
"width": "250",
"items": [
{
"type": "FactSet",
"facts": [
{
"id": "orderFromSun",
"title": "Order from the sun:"
},
{
"id": "planetNumSatellites",
"title": "Known satellites:"
},
{
"id": "solarOrbitYears",
"title": "Solar orbit (*Earth years*):"
},
{
"id": "solarOrbitAvgDistanceKm",
"title": "Average distance from the sun (*km*):"
}
]
}
]
}
]
},
{
"id": "imageAttribution",
"type": "TextBlock",
"size": "medium",
"isSubtle": true,
"wrap": true
}
]
}
],
"actions": [
{
"type": "Action.OpenUrl",
"title": "Learn more on Wikipedia"
}
]
}Implement Action Messaging extension with Yo Teams
Update the action messaging extension to use Planet information.
- Open file “src\app\planetActionMessagingMessageExtension\PlanetActionMessagingMessageExtension.ts”.
- Update onFetchTask method as below to show input message for planet selection:
<!-- /* Font Definitions */ @font-face {font-family:"Cambria Math"; panose-1:2 4 5 3 5 4 6 3 2 4; mso-font-charset:0; mso-generic-font-family:roman; mso-font-pitch:variable; mso-font-signature:3 0 0 0 1 0;} @font-face {font-family:Calibri; panose-1:2 15 5 2 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:swiss; mso-font-pitch:variable; mso-font-signature:-469750017 -1073732485 9 0 511 0;} @font-face {font-family:Consolas; panose-1:2 11 6 9 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:modern; mso-font-pitch:fixed; mso-font-signature:-536869121 64767 1 0 415 0;} /* Style Definitions */ p.MsoNormal, li.MsoNormal, div.MsoNormal {mso-style-unhide:no; mso-style-qformat:yes; mso-style-parent:""; margin-top:0in; margin-right:0in; margin-bottom:8.0pt; margin-left:0in; line-height:107%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoChpDefault {mso-style-type:export-only; mso-default-props:yes; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoPapDefault {mso-style-type:export-only; margin-bottom:8.0pt; line-height:107%;} @page WordSection1 {size:8.5in 11.0in; margin:1.0in 1.0in 1.0in 1.0in; mso-header-margin:.5in; mso-footer-margin:.5in; mso-paper-source:0;} div.WordSection1 {page:WordSection1;} -->
public async onFetchTask(context: TurnContext, value: MessagingExtensionQuery): Promise<MessagingExtensionResult | TaskModuleContinueResponse> {
return Promise.resolve<TaskModuleContinueResponse>({
type: "continue",
value: {
title: "Input form",
card: CardFactory.adaptiveCard({
$schema: "http://adaptivecards.io/schemas/adaptive-card.json",
type: "AdaptiveCard",
version: "1.2",
body: [
{
type: "TextBlock",
text: "Please enter planet name to insert into the message:"
},
{
type: "Input.Text",
id: "planetName",
placeholder: "Enter planet name (e.g. Mercury, Venus, Earth, Mars, Jupiter, Saturn, Uranus, Neptune)"
},
],
actions: [
{
type: "Action.Submit",
title: "OK",
data: { id: "unique-id" }
}
]
})
}
});
}3. Update onSubmitAction method to query the planet data in json format and display the planet information.
<!-- /* Font Definitions */ @font-face {font-family:"Cambria Math"; panose-1:2 4 5 3 5 4 6 3 2 4; mso-font-charset:0; mso-generic-font-family:roman; mso-font-pitch:variable; mso-font-signature:3 0 0 0 1 0;} @font-face {font-family:Calibri; panose-1:2 15 5 2 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:swiss; mso-font-pitch:variable; mso-font-signature:-469750017 -1073732485 9 0 511 0;} @font-face {font-family:Consolas; panose-1:2 11 6 9 2 2 4 3 2 4; mso-font-charset:0; mso-generic-font-family:modern; mso-font-pitch:fixed; mso-font-signature:-536869121 64767 1 0 415 0;} /* Style Definitions */ p.MsoNormal, li.MsoNormal, div.MsoNormal {mso-style-unhide:no; mso-style-qformat:yes; mso-style-parent:""; margin-top:0in; margin-right:0in; margin-bottom:8.0pt; margin-left:0in; line-height:107%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoChpDefault {mso-style-type:export-only; mso-default-props:yes; font-family:"Calibri",sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-fareast-font-family:Calibri; mso-fareast-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-bidi-font-family:"Times New Roman"; mso-bidi-theme-font:minor-bidi; mso-ansi-language:EN-IN;} .MsoPapDefault {mso-style-type:export-only; margin-bottom:8.0pt; line-height:107%;} @page WordSection1 {size:8.5in 11.0in; margin:1.0in 1.0in 1.0in 1.0in; mso-header-margin:.5in; mso-footer-margin:.5in; mso-paper-source:0;} div.WordSection1 {page:WordSection1;} -->
public async onSubmitAction(context: TurnContext, value: TaskModuleRequest): Promise<MessagingExtensionResult> {
// load planets & sort them by their order from the sun
const planets: any = require("../planets.json");
// get the selected planet
const selectedPlanet: any = planets.filter((planet) => planet.name === value.data.planetName)[0];
// load display card
const adaptiveCardSource: any = require("../planetDisplayCard.json");
// update planet fields in display card
adaptiveCardSource.actions[0].url = selectedPlanet.wikiLink;
find(adaptiveCardSource.body, { "id": "cardHeader" }).items[0].text = selectedPlanet.name;
const cardBody: any = find(adaptiveCardSource.body, { "id": "cardBody" });
find(cardBody.items, { "id": "planetSummary" }).text = selectedPlanet.summary;
find(cardBody.items, { "id": "imageAttribution" }).text = "*Image attribution: " + selectedPlanet.imageAlt + "*";
const cardDetails: any = find(cardBody.items, { "id": "planetDetails" });
cardDetails.columns[0].items[0].url = selectedPlanet.imageLink;
find(cardDetails.columns[1].items[0].facts, { "id": "orderFromSun" }).value = selectedPlanet.id;
find(cardDetails.columns[1].items[0].facts, { "id": "planetNumSatellites" }).value = selectedPlanet.numSatellites;
find(cardDetails.columns[1].items[0].facts, { "id": "solarOrbitYears" }).value = selectedPlanet.solarOrbitYears;
find(cardDetails.columns[1].items[0].facts, { "id": "solarOrbitAvgDistanceKm" }).value = Number(selectedPlanet.solarOrbitAvgDistanceKm).toLocaleString();
// return the adaptive card
const card = CardFactory.adaptiveCard(adaptiveCardSource);
return Promise.resolve({
type: "result",
attachmentLayout: "list",
attachments: [card]
} as MessagingExtensionResult);
}4. If you are getting an error for find
Just add below line of code in the import section of the file.
import { find } from "lodash";Test your solution
- Open a separate command prompt and run ngrok.exe command as below.

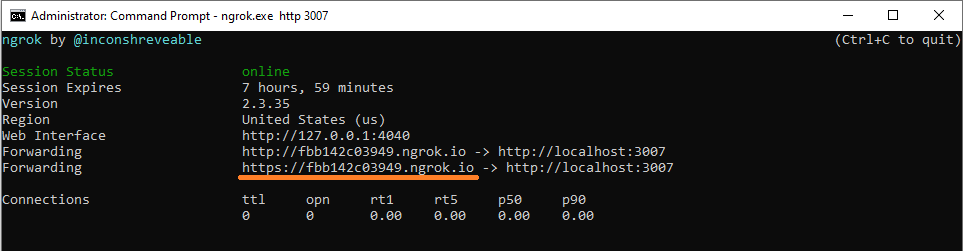

ngrok.exe http 3007

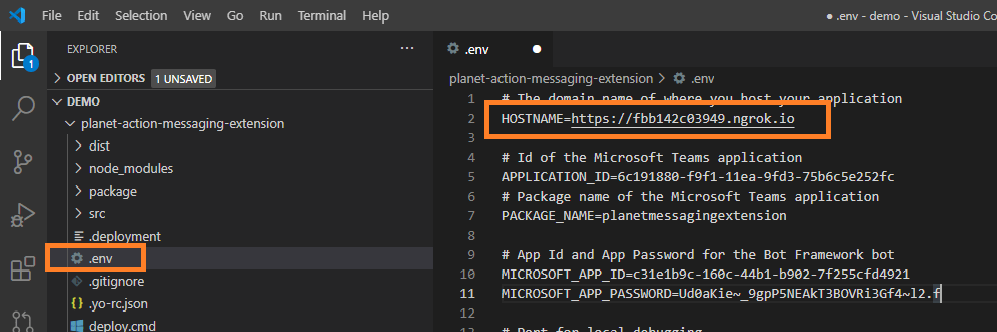

2. Copy this forwarding https://fbb142c03949.ngrok.io address and update the HOSTNAME inside .env file
3. Update Messaging endpoint in Azure Bot Channel registration
4. From your solutions node command prompt, type following command to create a .zip package.
gulp build
gulp manifest5. After executing this commands, you will be able to see a .zip package under the packages folder of solution
6. On the command prompt, run gulp command as below

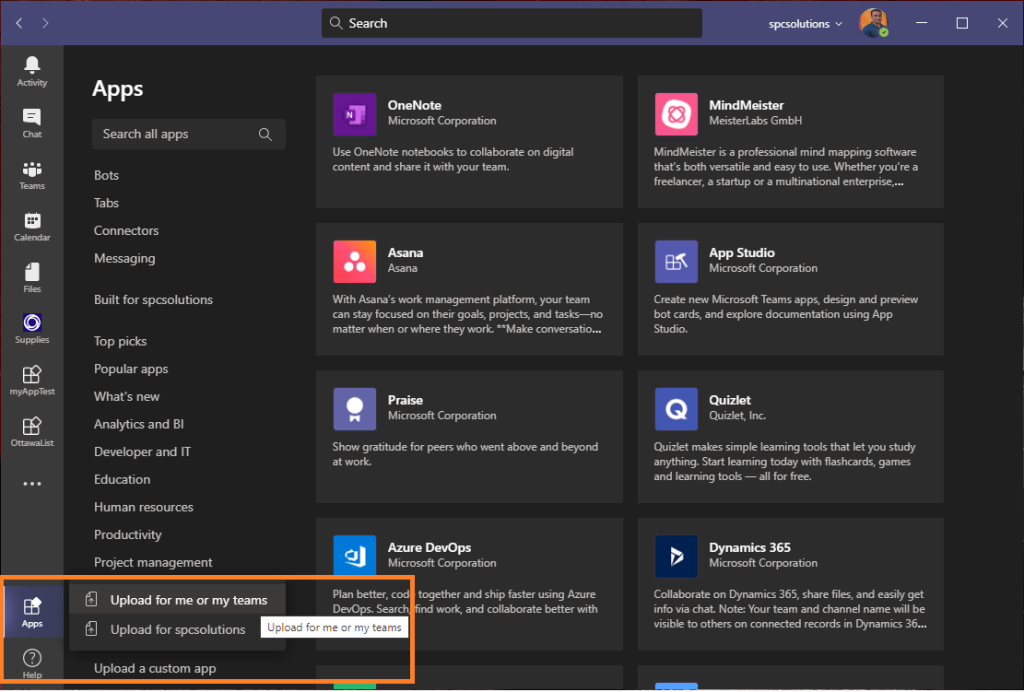

gulp serve --debug7. Open MS Teams and from Apps, upload your .zip package file by clicking on Upload a custom app.

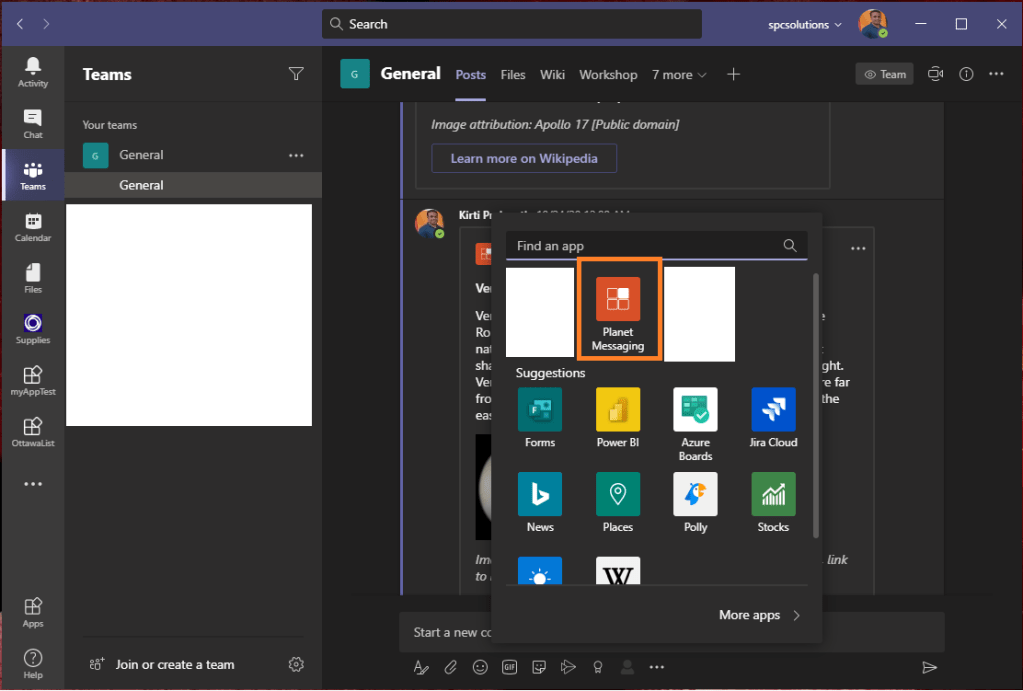

8. After adding, from compose box of MS Teams you can access this Action-based messaging extensions. Using this users can trigger actions in external services while inside of Teams.
